Aquametro Oil Meters
- DN 4 - 50
- Flow ranges: From 1 l/h to 20000 l/h
- Accuracy: 0.1 % to 1 %
- Pressure: threaded ends = 16 bar, flanges = 25 / 40 bar
- Temperature ratings up to 180 Deg C
- Pulse and analogue outputs available
- Flange (DIN, ANSI, JIS), threaded ends
Domestic & Light Industrial Oil Meters

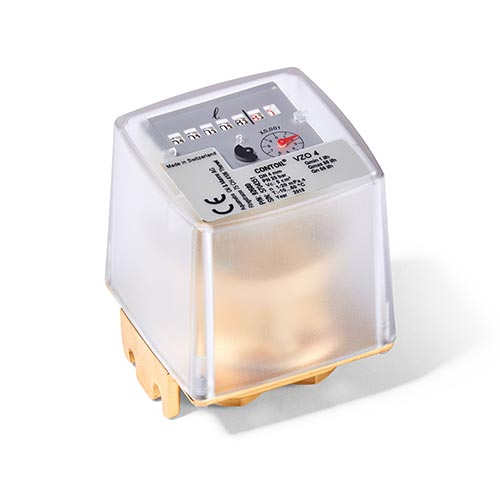

Contoil type VZO4 1/8" thread size. Range 1-50 l/hr
Contoil type VZO8 1/4" thread size. Range 4-135 l/hr
Both available with reed switch pulse output.
VZO Industrial & Marine Oil Meters

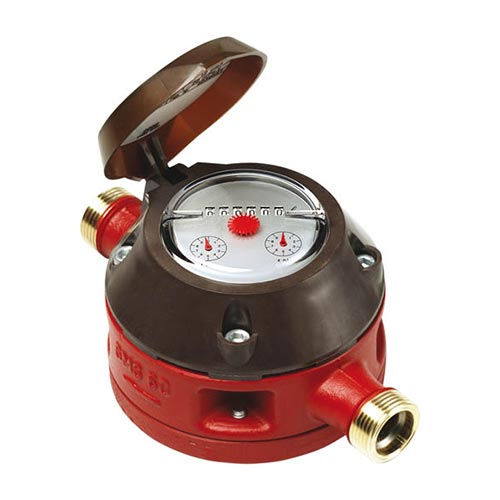

Contoil type VZO 15mm to 50mm with mechanical registers available with screwed or flanged connection and with optional reed switch or inductive type pulse outputs.
VZF Industrial & Marine Oil Meters

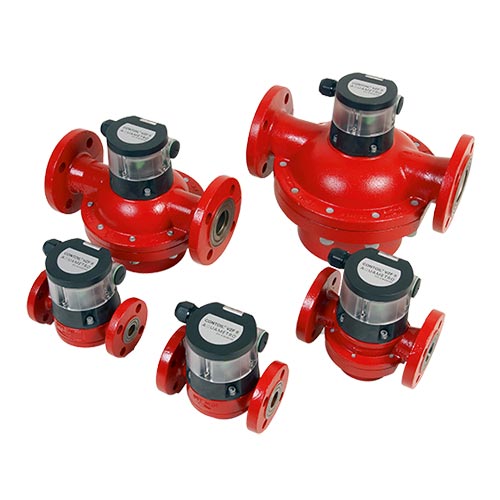

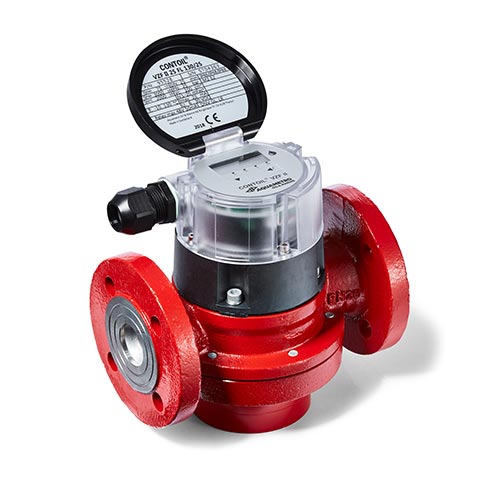

Contoil type VZF 15mm to 50mm with Dual LCD registers for reset and non-reset plus flow rate measurement in litres or Kg per hour.
Selectable pulse, frequency, 4-20mA and alarm outputs. Available with screwed or flanged connections.
Marine Fuel Treatment
Aquametro's modular product range ensures that you can easily combine and expand your applications with our custom subsystems. Their intelligent systems help you increase the amount of combustible fuel and reduce waste oil disposal. To visit our fuel treatment site please click here

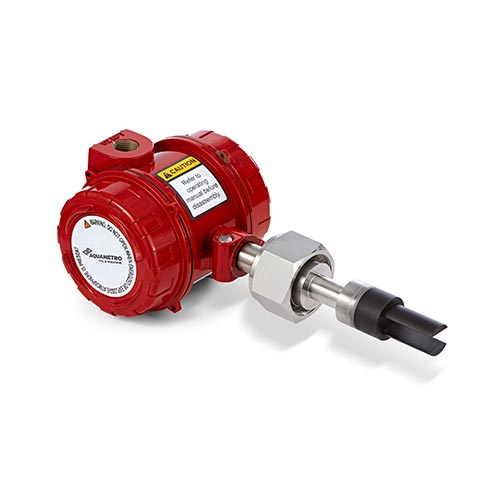

Viscosity Measurement for Industrial and Marine Applications
- Viscosity calibrated ranges 0.5 to 100 cP (Viscomaster) 0 to 50 cP (Dynamic)
- Viscosity accuracy ±1 % span (±0.2 cP in 0 to 10 cP range)
- Viscosity repeatability ±0.5 % of reading
- Temperature range Process -50 to +200 °C (-60 to +392 °F) Ambient -40 to +85 °C (-40 to +185 °F)
- Pressure range (Lloyd’s approval valid to 70 bar / 1030 psi maximum.) as defined by process connection
